The GSIS reconciliation process takes a batch of GSIS updates to ROCK and processes them across OTTs. Having GSIS schedules updated is important to make the right planning decisions. Furthermore it enables accurate projection of future stock. This page describes how the process is designed.

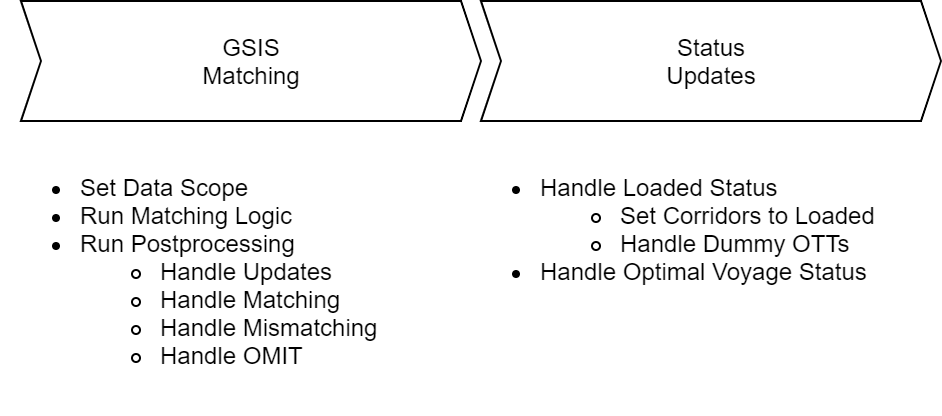

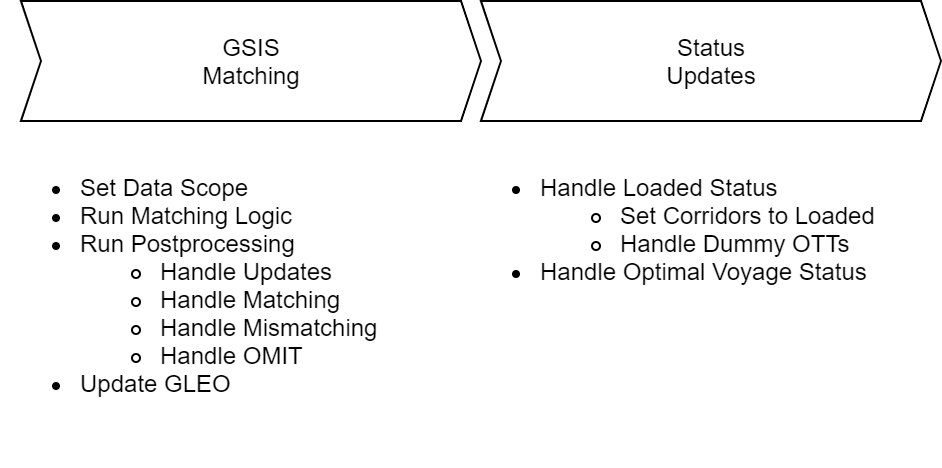

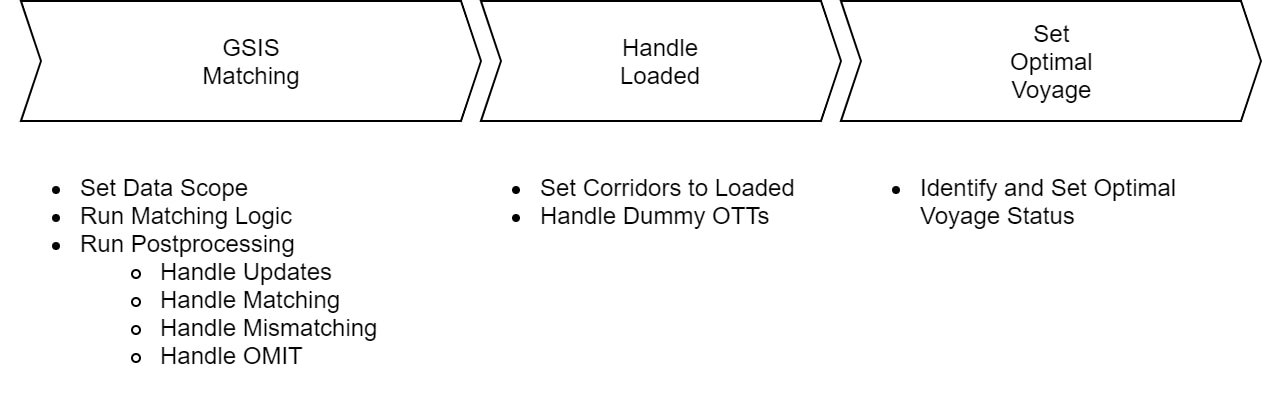

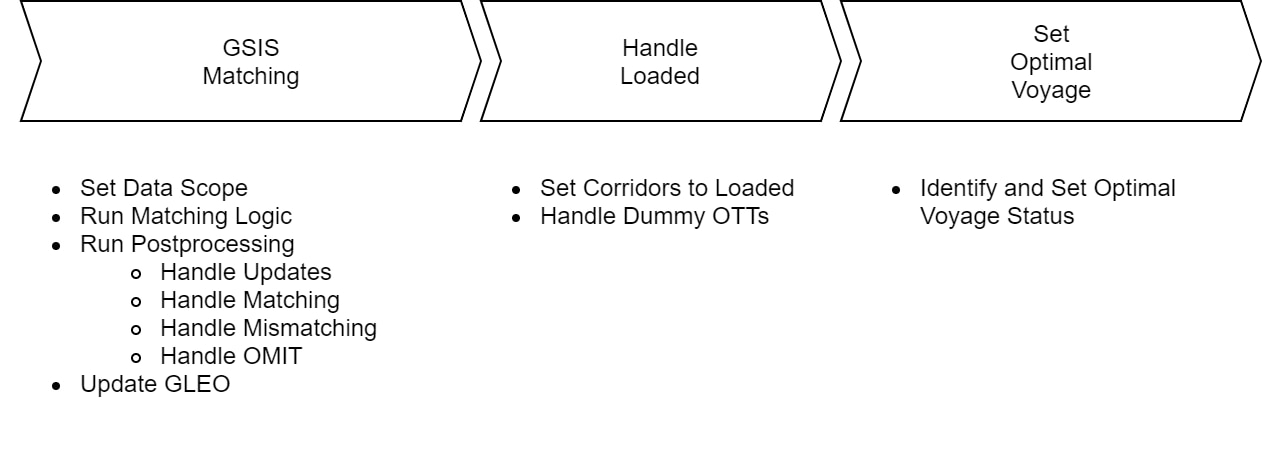

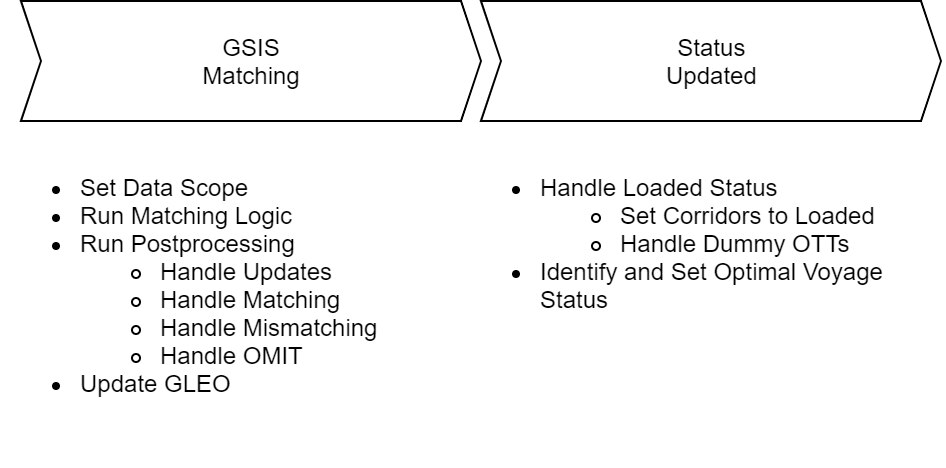

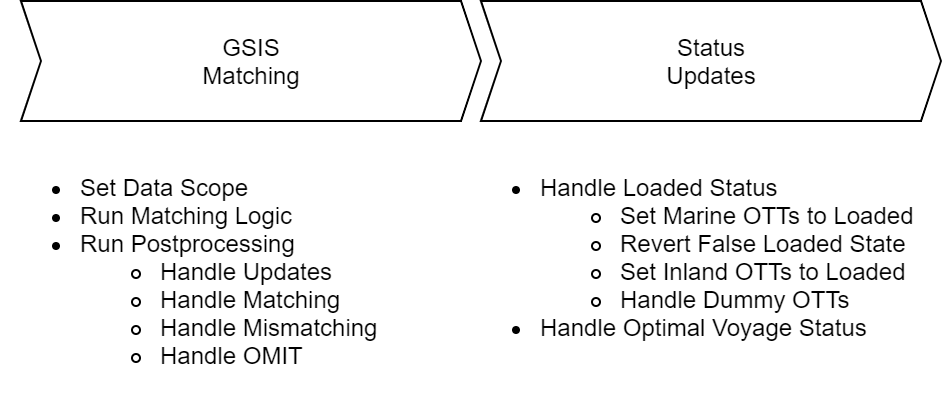

At high level the process has the following steps:

Match Summary
In this first step the latest GSIS schedules are compared against OTTs to identify any changes on the routing information. Matching rules are applied to identify which events should be invoked.
Invoke Events
The reconciliation events (updates, mismatches, rematches omit checks) are executed done according to the flags set in the match summary.
OTT Status and Flags
As an additional step in the GSIS reconciliation logic the OTT status and flags are maintained.

Match Summary

Input data is selected for the reconciliation process in accordance with below:

Data	Notes	Criteria/How data looks
GSIS Schedules	ROCK keeps a history of 6 months GSIS data, and receive an hourly batch update for every schedule into the future. For GSIS reconciliation logic the full GSIS data is used, which is approximately 6 months back to 6 months into future.	Schedules from -6 months to + 6 months
OTT	When selecting the OTT data, the timeframe of available GSIS schedules are evaluated as the earliest arrival and highest departure time of each call.	OTTs in all status except "Cancelled" Ocean OTTs (Inland OTTs are excluded as they do not have a GSIS schedule) OTT Origin Arrival Time >= GSIS min arrival time OTT Destination Departure Time <= GSIS max departure time Destination Departure Time >= -1 month ago (keep a small tail of already finished OTTs)

The matching logic is run against each OTT and compares each of the origin and destination calls against vessel schedules.
Matching is done using the following approach, for both origin and destination:

Note: Destination matching is similar to origin, one difference is that only terminal calls happening after the origin call are considered

Identify all schedules based on the following matching criteria
- OTT VesselCode = GSIS VesselCode
- OTT ORIGIN \ DESTINATION Call PoolCode = GSIS TerminalCode PoolCode
- GSIS ArrTime is within N Days of OTT ORIGIN \ DESTINATION arrival time (where N is 30 days for OTTs in state Loaded, else 7 days)
- GSIS DepTime is within N Days of OTT ORIGIN \ DESTINATION departure time (where N is 30 days for OTTs in state Loaded, else 7 days)
If more than one schedule exists, the following ordering is applied
1. Exact matches of schedule IDs aka DSC ID (descending by IsMatchingDSC = whether schedule DSC equals OTT ORIGIN \ DESTINATION DSC code)
2. Exact matches of ORIGIN\DESTINATION site (descending by IsMatchingORIGIN\DESTINATIONSiteCode)
3. Lowest absolute time difference of call as per schedule to OTT ORIGIN \ DESTINATION call (ASC by ArrDiffABS)
4. In ascending order by schedule ID (unique, tiebreaker)
OTT is matched by first item of ordered scheduled (rank = 1)

Sample matching data (matching an OTT Origin Call):

OTT Origin Call Data

OTT number	Origin Schedule ID	Vessel code	Origin site	Origin pool	Origin Arr Voy	Origin Dep Voy	Arrival	Departure
R19397349	11144131	H4J	MYTPPTM	MYTPP	950N	950N	2019-12-17 10:12	2019-12-21 11:22

Relevant GSIS Schedules (ordered). All schedules below match the Origin site, differences are highlighted.

	Reason for rank	Schedule ID	Vessel code	Origin site	Origin pool	Origin Arr Voy	Origin Dep Voy	Arrival	Departure
1	Precise match	11144131	H4J	MYTPPTM	MYTPP	950N	950N	2019-12-17 10:12	2019-12-21 11:22
2	Different timing, but closer to OTT schedule than 3	11144127	H4J	MYTPPTM	MYTPP	949S	949S	11-12-2019 00:13	11-12-2019 13:41
3		11144135	H4J	MYTPPTM	MYTPP	952W	952W	26-12-2019 10:09	26-12-2019 21:18

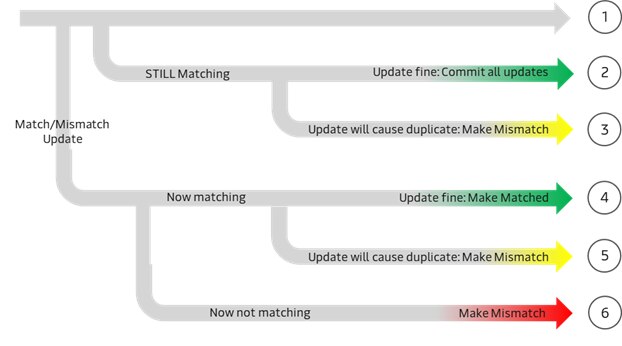

Based on matched summary, each OTT is flagged according to below types, which dictate which actions are required

Criteria				CaseType		Post Processing Actions
Was Matched	Is Now Matched	Updates	Duplicate	#	Event	Run Mismatch	Run Rematch	Commit Updates	Check Omit
Yes	Yes	0	-	1	OTT still matches, but no updates	No	No	No	No
Yes	Yes	>0	Yes	2	OTT still matches, but update causes duplicate OTTs	Yes	No	No	No
Yes	Yes	>0	No	3	OTT still matches and updating is safe	No	No	Yes	Yes
No	No	-		4	OTT still does not match to any schedule	No	No	No	No
No	Yes	-	Yes	5	OTT now matches again, but update causes duplicate OTTs	No	No	No	No
No	Yes	-	No	6	OTT now matches again and re-matching is safe	No	Yes	No	Yes
Yes	No	-	-	7	OTT no longer matches to a schedule	Yes	No	No	No

Invoke Events

GSIS events are processed according to the event flags, following the below rules

Event Group	OTT updates	OTT log updates	Cancellations
Mismatch	IsGSISmatched = 0 Dated Schedule ID codes set to NULL	Mismatch event Notifications are triggered	is_unlocked = OTT does not have any OTT lock, equ group lock or vessel call lock if is_unlocked: OTT is Cancelled (Status updated)
Rematch	All routing information on OTT IsGSISmatched=1	Rematch event	none
Normal Update	All routing information is updated IsGSISmatched = 1	if updated: voyage number update event if updated: origin dates update event if updated: dest dates update event	none
Check OMIT	Omit status for origin and dest is_ott_scope: Ott is in state A if is_ott_scope: planned equ in state A cut to S	if origin now omit: origin omit event if origin no longer omit: origin resolved omit event if dest now omit: dest omit event if dest no longer omit: dest resolved omit event	is_ott_scope = OttStatus IN ('S', 'A'): new_omit = Origin is now OMIT or Dest is now OMIT if is_ott_scope and new_omit: OTT state set to 'C'

OTT Status and Flags

The final step in the reconciliation process includes maintaining the status codes for OTTs

Step	Applies to	Condition	Action	Shown in Activity Log
Set marine OTTs to LOADED	Marine OTTs in status SUGGESTED or APPROVED	There is Actual Arrival coming from GSIS	Set OTT state to LOADED	Yes
Revert outdated Loaded state	Marine OTTs in status LOADED	The OTTs have neither Actual Arrival set, nor currently matching containers (due to schedule changes, Ocean Reconciliation might not attribute the containers to this OTT any more)	Set OTT state to the state they were in prior to Loaded	Yes
Set inland OTTs to LOADED	Marine OTTs in status SUGGESTED or APPROVED	Actual Arrival date from GSIS has been reached	Set OTT state to LOADED	Yes
Set dummy OTTs to LOADED	Dummy OTTs (type 'xx%')	Corridor arrival date has been reached	Set OTT state to LOADED All planned equipment is marked as Loaded	Yes
Handle optimal voyage status	Marine OTTs		Mark as optimal voyage, if origin or destination site are NOT called more than once within the voyage	No
